CBSE - Class 11 > Physics > Mechanical Properties of Fluids Worksheets

Free CBSE - Class 11 Physics - Mechanical Properties of Fluids worksheets

Sample Worksheets

Here is a Sample Worksheet for you to Practice. Download this worksheet to see the answers.

1.
A U-shaped wire is dipped in a soap solution, and removed. The thin soap film formed between the wire and the light slider supports a weight of $1.5 \times 10^{-2} N$ (which includes the small weight of the slider). The length of the slider is 30 cm. What is the surface tension of the film ?
2.

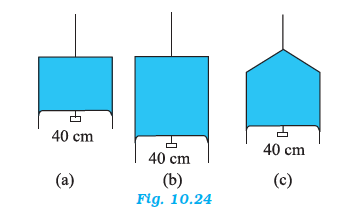

Figure 10.24 (a) shows a thin liquid film supporting a small weight = $4.5 \times 10^{-2} N$. What is the weight supported by a film of the same liquid at the same temperature in Fig. (b) and (c) ? Explain your answer physically.

3.
What is the pressure inside the drop of mercury of radius 3.00 mm at room temperature ? Surface tension of mercury at that temperature (20 °C) is $4.65 \times 10^{-1} N m^{-1}$. The atmospheric pressure is $1.01 \times 10^5 Pa$. Also give the excess pressure inside the drop.
4.
What is the excess pressure inside a bubble of soap solution of radius 5.00 mm, given that the surface tension of soap solution at the temperature (20 °C) is $2.50 \times 10^{-2} N m^{-1}$ ? If an air bubble of the same dimension were formed at depth of 40.0 cm inside a container containing the soap solution (of relative density 1.20), what would be the pressure inside the bubble ? (1 atmospheric pressure is $1.01 \times 10^5 Pa$).
5.
Can Bernoulli’s equation be used to describe the flow of water through a rapid in a river ? Explain.
6.
Does it matter if one uses gauge instead of absolute pressures in applying Bernoulli’s equation ? Explain.
7.
Glycerine flows steadily through a horizontal tube of length 1.5 m and radius 1.0 cm. If the amount of glycerine collected per second at one end is $4.0 \times 10^{-3} kg s^{-1}$, what is the pressure difference between the two ends of the tube ? (Density of glycerine = $1.3 \times 10^3 kg m^{-3}$ and viscosity of glycerine = $0.83 Pa s$). [You may also like to check if the assumption of laminar flow in the tube is correct].
8.
In a test experiment on a model aeroplane in a wind tunnel, the flow speeds on the upper and lower surfaces of the wing are $70 m s^{-1}$ and $63 m s^{-1}$ respectively. What is the lift on the wing if its area is $2.5 m^2$ ? Take the density of air to be $1.3 kg m^{-3}$.
9.

Figures 10.23(a) and (b) refer to the steady flow of a (non-viscous) liquid. Which of the two figures is incorrect ? Why ?

10.
The cylindrical tube of a spray pump has a cross-section of $8.0 cm^2$ one end of which has 40 fine holes each of diameter 1.0 mm. If the liquid flow inside the tube is $1.5 m min^{-1}$, what is the speed of ejection of the liquid through the holes ?
Download Download this Worksheet
- OR -

Build a Custom CBSE - Class 11 Physics - Mechanical Properties of Fluids worksheets

Download free printable Mechanical Properties of Fluids Worksheets to practice. With thousands of questions available, you can generate as many Mechanical Properties of Fluids Worksheets as you want.
